Alpine GTA V6 Turbo Le Mans \\\\\\\'90-91
Production year
1990-1991
Engine type
V6 T
Engine name
RPV 2.5L
Max Speed
250 km/h
Power
197 hp
Max RPM
6100
0-100 km/h
6.7 sec
Torque Peak
297 Nm
Transmission
5-MT
Weight
1235 kg
Layout
RR
Number Produced
325 of 4660
Manufactured in
France
Dubbed ‘GTA’ for Grand Tourismo Alpine, the new car stunned the crowds at the 1985 Geneva Motorshow. The GTA shared its basic design with the A310, but technically it was quite a departure from the previous design. Both the changes to the design and the powerful engines offered were well received and the GTA proved equally successful as the A310. At the end of the production run, two limited edition models were launched, the Mille Miles and Le Mans in 1989 and 1990 respectively. The GTA’s replacement, the 3 litre, 250 bhp A610 Turbo entered production in 1990.

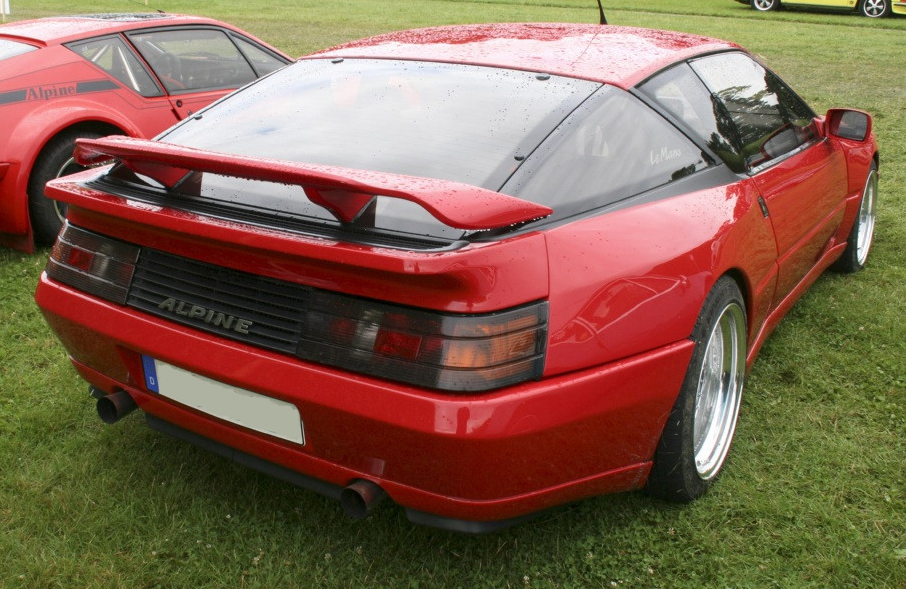

Featured is a GTA Le Mans, easily recognisable by its revised nose and larger wheels compared to the standard Turbo. It is pictured here at the Zolder, Belgium track, where it took part in a world record attempt to get as many Renault Sport cars on track as possible. Well over 650 Renaults and Alpines were entered.
| Length / Width / Height | 4310 mm (169.7 in) / 1812 mm (71.3 in) / 1197 mm (47.1 in) |
| Wheelbase / Track (fr/r) | 2339 mm (92.1 in) / 1555 mm (61.2 in) / 1526 mm (60.1 in) |
Specifications of Alpine V6 GTA
| Model | V6 GT D 500 05 | V6 Turbo D 501 05 | V6 Turbo USA D 50 A | V6 Turbo Catalyse suisse D501 05 | V6 Turbo Catalyse D 502 05 | V6 Turbo Catalyse “Le Mans” D 502 05 A | V6 Turbo Catalyse “Le Mans” Danielson D 502 05 A/altered |
| Engine | V6 PRV | V6 PRV | V6 PRV | V6 PRV | V6 PRV | V6 PRV | V6 PRV |
| Type | Longitudinal | Longitudinal | Longitudinal | Longitudinal | Longitudinal | Longitudinal | Longitudinal |
| Cylinders | 6 cylinders | 6 cylinders | 6 cylinders | 6 cylinders | 6 cylinders | 6 cylinders | 6 cylinders |
| Valves | 12 valves | 12 valves | 12 valves | 12 valves | 12 valves | 12 valves | 12 valves |
| Camshaft | top | top | top | top | top | top | top |
| Engine size | 2,849 cc | 2,458 cc | 2,458 cc | 2,458 cc | 2,458 cc | 2,458 cc | 2,458 cc |
| Compression ratio | 9,5 : 1 | 8,6 :1 | 8 : 1 | 8 : 1 | 8 : 1 | 8 : 1 | 8 : 1 |
| Max power | 118 kW (160 PS; 158 hp) at 5 750 rpm | 147 kW (200 PS; 197 hp) at 5 750 rpm | 132 kW (179 PS; 177 hp) at 5 900 rpm | 136 kW (185 PS; 182 hp) at 5 500 rpm | 136 kW (185 PS; 182 hp) at 5 750 rpm | 136 kW (185 PS; 182 hp) at 5 750 rpm | 154 kW (209 PS; 207 hp) at 5 200 rpm |
| Max torque | 221 N·m (163 lb·ft) at 3 500 rpm | 285 N·m (210 lb·ft) at 2 500 rpm | 276 N·m (204 lb·ft) at 4 000 rpm | 294 N·m (217 lb·ft) at 2 250 rpm | 288 N·m (212 lb·ft) at 2 200 rpm | 288 N·m (212 lb·ft) at 2 200 rpm | 350 N·m (260 lb·ft) at 2 200 rpm |
| Catalytic converter | No | No | Yes | Yes | Yes | Yes | Yes |
| Fuel | RON 97 | RON 97 | RON 95 or 98 unleaded | RON 95 or 98 unleaded | RON 95 or 98 unleaded | RON 95 or 98 unleaded | RON 95 or 98 unleaded |
| Carburetor | Carburetor SC 34 + DC 35 | electronic injection | electronic injection | electronic injection | electronic injection | electronic injection | electronic injection |
| Air supply | atmospheric | Turbocharged 0.65 bar (9.4 psi) | Turbocharged 0.65 bar (9.4 psi) | Turbocharged 0.70 bar (10.2 psi) | Turbocharged 0.70 bar (10.2 psi) | Turbocharged 0.70 bar (10.2 psi) | Turbocharged 1.0 bar (15 psi) |
| Kilometer start-stop | 28,4 s | 26,8 s | – | – | – | 27,5 s | 26,7 s |
| 0 to 100 km/h / 60 mph | 8 s | 7 s | – | – | 7 s | 6.7 s | 5,7 s |
| Max speed | 235 km/h (146 mph) | 250 km/h (160 mph) | – km/h | – km/h | 243 km/h (151 mph) | 240 km/h (150 mph) | 247 km/h (153 mph) |
| Consumption 90 km/h 120 km/h Town | 7,00 l/100 km 7,90 l/100 km 14,70 l/100 km | 6,40 l/100 km 8,10 l/100 km 12,80 l/100 km | -l/100 km -l/100 km -l/100 km | -l/100 km -l/100 km -l/100 km | -l/100 km -l/100 km -l/100 km | 7,10 l/100 km 9,0 l/100 km 13,90 l/100 km | 8,30 l/100 km 10,10 l/100 km 13,7 l/100 km |
| Fuel tank | 72 L (15.8 imp gal; 19.0 US gal) | 72 L (15.8 imp gal; 19.0 US gal) + 1 L (0.2 imp gal; 0.3 US gal) | 57 L (12.5 imp gal; 15.1 US gal) | 72 L (15.8 imp gal; 19.0 US gal) + 1 L (0.2 imp gal; 0.3 US gal) | 72 L (15.8 imp gal; 19.0 US gal) + 1 L (0.2 imp gal; 0.3 US gal) | 72 L (15.8 imp gal; 19.0 US gal) + 1 L (0.2 imp gal; 0.3 US gal) | 72 L (15.8 imp gal; 19.0 US gal) + 1 L (0.2 imp gal; 0.3 US gal) |
| Aerodynamic | Cx : 0,28 SCx : 0,48 | Cx : 0,30 SCx : 0,51 | Cx : 0,30 SCx : 0,51 | Cx : 0,30 SCx : 0,51 | Cx : 0,30 SCx : 0,51 | Cx : 0,30 SCx : 0,59 | Cx : 0,30 SCx : 0,59 |
